Reliable, Durable, Trusted

Proudly Made In The U.S.A!

HIGHLIGHTS

High Heat
Performance

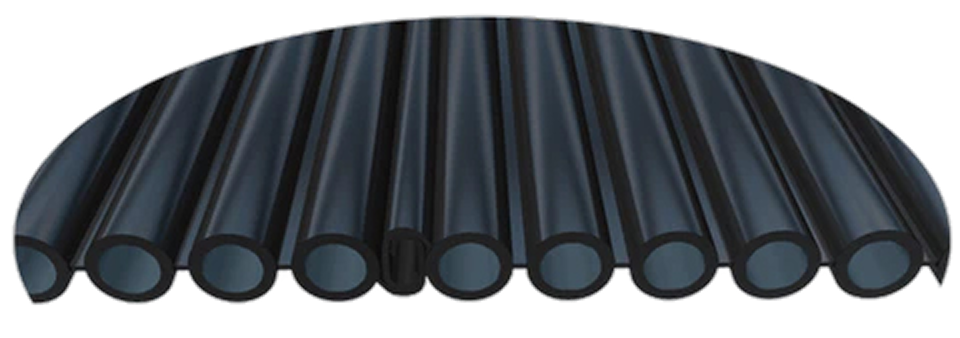

A tube-and-web design allows for normal expansion and contraction, extending service life while also collecting more heat. Each panel contains 8 individual plates that are thermally-welded and insert-molded. A direct, metered manifold delivers a balanced flow through the collector and prevents hot-spots.

Quality
Replacement

Compatible with any solar pool heater that has round 1.5” or 2" I.D. headers and makes connections with rubber hose type connectors. The header size is a measurement of the internal diameter.

Simple
Installation

Utilizes rubber hoses and metal hose clamps to make connections. These components are by far the fastest & simplest method for attaching & securing solar pool heating panels (less hassle & faster assembly).

Reliability, Longevity

SwimEasy solar collectors undergo a state-of-the-art manufacturing process designed to substantially increase the material’s resistance to UV light. This specialized technique alters the physical properties of the plastic, enabling each collector the ability to withstand the harsh conditions of a rooftop, in all types of weather, for up to 15-20 years!

Each panel is put up against more than 40 quality control inspections throughout the entire manufacturing process to ensure the final product.

High Heat Performance

A tube-and-web design allows for normal expansion and contraction, extending service life while also collecting more heat. Each panel contains 8 individual plates that are thermally-welded and insert-molded. A direct, metered manifold delivers a balanced flow through the collector and prevents hot-spots.

High-Quality Replacement

Compatible with any solar pool heater that has round 1.5” or 2" I.D. headers and makes connections with rubber hose type connectors. The header size is a measurement of the internal diameter.

Simple Installation

Utilizes rubber hoses and metal hose clamps to make connections. These components are by far the fastest & simplest method for attaching & securing solar pool heating panels (less hassle & faster assembly).

Reliability & Longevity

SwimEasy solar collectors undergo a state-of-the-art manufacturing process designed to substantially increase the material’s resistance to UV light. This specialized technique alters the physical properties of the plastic, enabling each collector the ability to withstand the harsh conditions of a rooftop, in all types of weather, for up to 15-20 years!

Each panel is put up against more than 40 quality control inspections throughout the entire manufacturing process to ensure the final product.

SwimEasy Ground Mounted Solar Pool Heater

SWIMEASY AT A GLANCE

  • SwimEasy solar panels are a great choice for anyone looking for a premium panel capable of producing outstanding heating results without the hit of a premium price tag.



  • This panel has been used by professional installers across the country for decades for one simple reason; it works extremely well and keeps on working for years to come.



  • SwimEasy solar panels are an investment aiming to save you money, time, and the headache of replacing damaged panels year after year.

STATE-OF-THE-ART MANUFACTURING

  • Each solar panel undergoes a state-of-the-art manufacturing process designed to significantly increase the materials resistance to UV light. This process eliminates the inherent quality issues that plague cheaply manufactured products which typically see a lifespan of only 1-2 years.



  • The result of SwimEasy's high-grade materials & specialized manufacturing techniques is a panel capable of withstanding the harsh conditions of a rooftop, in all types of weather, for 15-20 years!

UNIVERSAL REPLACEMENT

Replaces ANY Solar Pool Heater With Round 1.5” or 2” Headers and Connects With Rubber Couplings!

  • SwimEasy solar panels are the perfect choice for anyone looking to replace existing panels or a complete system that uses rubber hoses & metal hose clamps.

  • SwimEasy panels fit interchangeably with any solar pool heater panel featuring a round 1.5” or 2” I.D. header and makes connections with a rubber hose type connector.

The header size is a measurement of the internal diameter of the manifold. Please verify this size before ordering!

HEADER MEASUREMENTS & SIZING

1.5" Header:

  • 1.5" manifold I.D. / 1.9" manifold O.D.
  • Uses rubber hoses with a 1.9" (1-7/8") I.D.

2" Header:

  • 2" manifold I.D. / 2.375" manifold O.D.
  • Uses rubber hoses with a 2.375" (2-3/8") I.D.

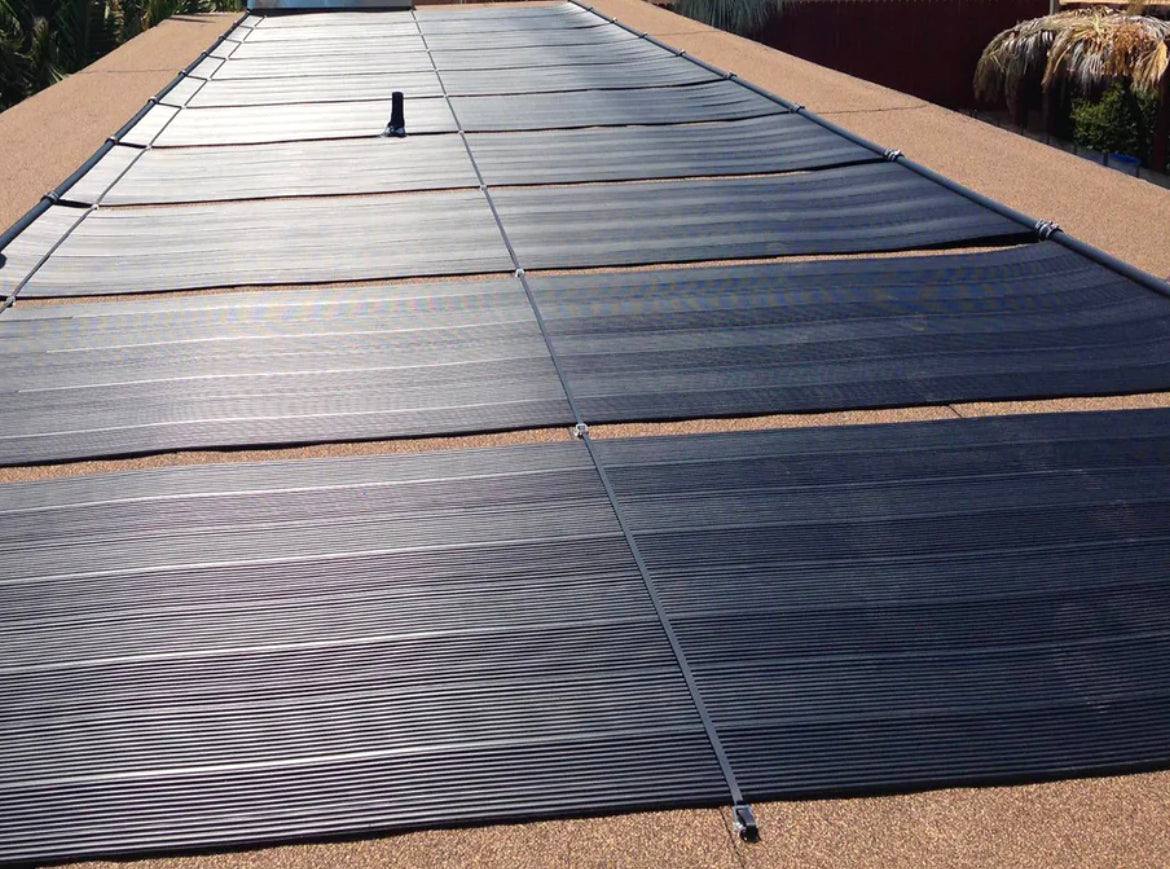

SwimEasy Roof Mounted Solar Pool Heater

SwimEasy

High-Performance

Universal Replacement

Solar Pool Heater Panel

NEED MULTIPLE PANELS ?
Installing or Replacing a
Complete System?


Save Big With A DIY Kit!
NEED MULTIPLE PANELS ?



Installing or Replacing a
Complete System?


Save Big With A DIY Kit!

Reliable, Durable, Trusted

& Proudly Made In The U.S.A!

THE IDEAL CHOICE IF YOUR LOOKING FOR:

High Heat
Performance

A tube-and-web design allows for normal expansion and contraction, extending service life while also collecting more heat. Each panel contains 8 individual plates that are thermally-welded and insert-molded. A direct, metered manifold delivers a balanced flow through the collector and prevents hot-spots.

Simple
Installation

Utilizes rubber hoses and metal hose clamps to make connections. These components are by far the fastest & simplest method for attaching & securing solar pool heating panels (less hassle & faster assembly).

High-Quality
Replacement

SwimEasy solar panels fit interchangeably with any solar pool heater panel that has round 1.5” or 2” I.D. header manifolds and makes connections with rubber hose type connectors.

Reliability &
Longevity

SwimEasy solar panels undergo a state-of-the-art manufacturing process designed to substantially increase the material’s resistance to UV light. This specialized technique alters the properties of the plastic, enabling each collector the ability to withstand the harsh conditions of a rooftop, in all types of weather, for up to 15-20 years!

SWIMEASY AT A GLANCE

  • SwimEasy solar panels are a great choice for anyone looking for a premium panel capable of producing outstanding heating results without the hit of a premium price tag.



  • This panel has been used by professional installers across the country for decades for one simple reason; it works extremely well and keeps on working for years to come.



  • SwimEasy solar panels are an investment aiming to save you money, time, and the headache of replacing damaged panels year after year.

STATE-OF-THE-ART MANUFACTURING

  • Each SwimEasy solar panel undergoes a state-of-the-art manufacturing process designed to significantly increase the materials resistance to UV light. This process eliminates the inherent quality issues that plague cheaply manufactured products which typically see a lifespan of only 1-2 years.



  • The result of SwimEasy's high-grade materials & specialized manufacturing techniques is a panel capable of withstanding the harsh conditions of a rooftop, in all types of weather, for 15-20 years!

Replaces ANY Solar Pool Heater With Round 1.5” or 2”
Headers and Connects With Rubber Couplings!

  • SwimEasy solar panels are the perfect choice for anyone looking to replace existing panels or a complete system that uses rubber hoses & metal hose clamps.

  • SwimEasy solar panels fit interchangeably with any solar pool heater panel featuring a round 1.5” or 2” I.D. header and makes connections with a rubber hose type connector.

The header size is a measurement of the internal diameter of the manifold. Please verify this size before ordering!

HEADER MEASUREMENTS & SIZING

1.5" Header:

  • 1.5" manifold I.D. / 1.9" manifold O.D.
  • Uses rubber hoses with a 1.9" (1-7/8") I.D.

2" Header:

  • 2" manifold I.D. / 2.375" manifold O.D.
  • Uses rubber hoses with a 2.375" (2-3/8") I.D.
NEED MULTIPLE PANELS ?
Installing or Replacing a Complete System?

Save Big With A DIY Kit!
SwimEasy Ground Mounted Solar Pool Heater
SwimEasy Roof Mounted Solar Pool Heater

SwimEasy

High-Performance

UNIVERSAL REPLACEMENT

Solar Pool Heater Panel



The SwimEasy Difference


Unmodified polypropylene has a high rate of degradation from UV exposure. Sunlight breaks down the plastic and weakens it, a serious problem for a solar collector as its very nature is to collect as much sunlight as possible. Each absorber plate of a SwimEasy solar collector is made from a propylene copolymer with synergistic antioxidants and UV screen including carbon black.

These special additives, coupled with state-of-the art manufacturing techniques, substantially increase the material’s resistance to UV light. These are vital components and essential for a solar collector to be capable of withstanding the sun's harsh conditions on a roof-top, through all forms of weather, for many years.

Products made from plastic typically start out as one-of-two types of resin blends:

Masterbatch

Natural (clear) resin pellets are mixed with a concentrate during the extrusion process. This concentrate would contain additives and fillers used to affect the end-product’s physical appearance or properties. Sometimes called a “salt-and-pepper blend,” this type of mix is less expensive for the manufacturer to use, but can often result in uneven distribution of key additives.

Precompounded

Compounding is a process of melt-blending plastics with other additives. This process alters the physical, thermal, or aesthetic characteristics of the plastic. Compounding starts with a base resin, which is blended with additives in an industrial mixer, producing a final resin ready for use in manufacturing. Additives are evenly distributed throughout the resin and subsequent end-products.


The SwimEasy Difference



The SwimEasy Difference


Unmodified polypropylene has a high rate of degradation from UV exposure. Sunlight breaks down the plastic and weakens it, a serious problem for a solar collector as its very nature is to collect as much sunlight as possible.

Each absorber plate of a SwimEasy solar collector is made from a propylene copolymer with synergistic antioxidants and UV screen including carbon black.

These special additives, coupled with state-of-the art manufacturing techniques, substantially increase the material’s resistance to UV light.

These are vital components and essential for a solar collector to be capable of withstanding the sun's harsh conditions on a roof-top, through all forms of weather, for many years.

Products made from plastic typically start out as one-of-two types of resin blends:

Masterbatch

Natural (clear) resin pellets are mixed with a concentrate during the extrusion process. This concentrate would contain additives and fillers used to affect the end-product’s physical appearance or properties. Sometimes called a “salt-and-pepper blend,” this type of mix is less expensive for the manufacturer to use, but can often result in uneven distribution of key additives.

Precompounded

Compounding is a process of melt-blending plastics with other additives. This process alters the physical, thermal, or aesthetic characteristics of the plastic. Compounding starts with a base resin, which is blended with additives in an industrial mixer, producing a final resin ready for use in manufacturing. Additives are evenly distributed throughout the resin and subsequent end-products.

How Many Panels Do I Need?

For help determining the number of panels you will need to heat your swimming pool and provide the results your looking for, see our informational help page:

Here we discuss all the factors that should be considered when planning your solar pool heating system. We will walk you through the planning phases, step by step, and help you identify the best setup for your pool, climate zone & heating goals.

HOW MANY PANELS DO I NEED?

For help determining the number of panels you will need to heat your swimming pool and provide the results your looking for, see our informational help page:

Here we discuss all the factors that should be considered when planning your solar pool heating system. We will walk you through the planning phases, step by step, and help you identify the best setup for your pool, climate zone & heating goals.

What Parts Do I Need?

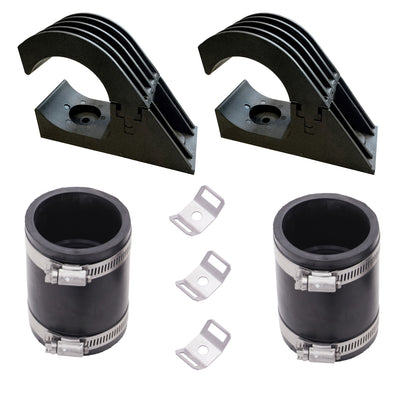

Panel Kit

  • Contains the parts necessary for installing a solar pool panel to a supporting surface and making water connections from one panel to another.
  • One (1) panel kit is required for each solar panel.

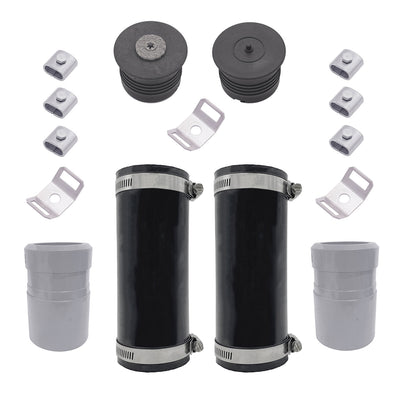

Row Kit

  • Contains the parts necessary for making water connections from a single row of solar panels to the supply and return plumbing lines.
  • Contains the parts necessary to aid in gravity drainage of the panels and piping.
  • One (1) row kit is required for each row of solar panels.

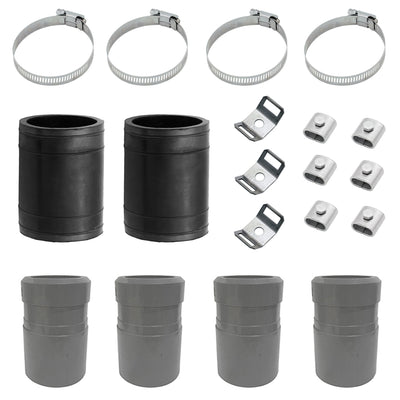

Row Spacer Kit

  • Contains the parts necessary to bypass mounting surface obstructions larger than 6" such as roof vents, skylights and exhaust fans. Allows connection of PVC pipe between the panels to provide proper clearance of the obstruction. Row Spacer Kits are also used to connect collectors into one row that are on different roof levels or that are facing different directions.

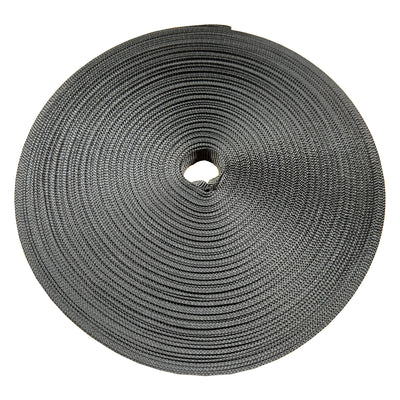

Polyester Hold-Down Strap

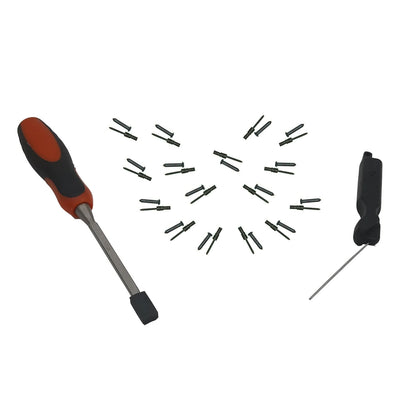

Repair Tool Kit

  • In the event a collector is damaged and incurs a pinhole leak, this kit contains everything needed to make a repair to the damaged riser tube.

Panel Kit

  • Contains the parts necessary for installing a solar pool panel to a supporting surface and making water connections from one panel to another.
  • (1) panel kit is required for each solar panel.

Row Kit

  • Contains the parts necessary for making water connections from a single row of solar panels to the supply and return plumbing lines.
  • Contains the parts necessary to aid in gravity drainage of the panels and piping.
  • One (1) row kit is required for each row of solar panels.

Row Spacer Kit

  • Contains the parts necessary to bypass mounting surface obstructions larger than 6" such as roof vents, skylights and exhaust fans. Allows connection of PVC pipe between the panels to provide proper clearance of the obstruction. Row Spacer Kits are also used to connect collectors into one row that are on different roof levels or that are facing different directions.

Polyester Hold-Down Strap

Repair Tool Kit

  • In the event a collector is damaged and incurs a pinhole leak, this kit contains everything needed to make a repair to the damaged riser tube.

WHAT PARTS DO I NEED?

Panel Kit

  • Contains the parts necessary for installing a solar pool panel to a supporting surface and making water connections from one panel to another.
  • One (1) panel kit is required for each solar panel.

Row Kit

  • Contains the parts necessary for making water connections from a single row of solar panels to the supply and return plumbing lines.
  • Contains the parts necessary to aid in gravity drainage of the panels and piping.
  • One (1) row kit is required for each row of solar panels.

Row Spacer Kit

  • Contains the parts necessary to bypass mounting surface obstructions larger than 6" such as roof vents, skylights and exhaust fans. Allows connection of PVC pipe between the panels to provide proper clearance of the obstruction. Row Spacer Kits are also used to connect collectors into one row that are on different roof levels or that are facing different directions.

Polyester Hold-Down Strap

Repair Tool Kit

  • In the event a collector is damaged and incurs a pinhole leak, this kit contains everything needed to make a repair to the damaged riser tube.

D.I.Y. KITS

Take the guess work out with one of our DIY system kits. Each kit contains everything you need.

  • Install your chosen number of solar panels in a single row. If the system is being broken-up into multiple rows, one additional row kit will be required for each added row. Please contact us if you need assistance with multi-bank / custom systems.
  • Mount solar panels to your preferred installation surface; roof or rack.
  • Make water connections to and from each panel.
    • Make water connections to your supply and return plumbing lines.
    • Allow for gravity drainage of the panels and piping when the pump is turned off (water drains back to your pool through the supply plumbing line).

What Parts are Included in the DIY Kit?

Panel Kit

  • Contains the parts necessary for installing a solar pool panel to a supporting surface and making water connections from one panel to another.
  • (1) panel kit is included for each solar panel.

Row Kit

  • Contains the parts necessary for making water connections from a row of solar pool heating panels to the systems supply and return plumbing lines. Also contains the parts necessary to aid in gravity drainage of the panels and piping.
  • (1) row kit is included for each system.

Hold-Down Strap

  • Fastens solar panels to a supporting surface (roof or rack) and keeps them secure.
  • (1) 100' Bulk Roll is included for each system.
  • For normal wind climates; two (2) straps are recommended per panel.
  • For high wind climates, between three (3) and four (4) straps are recommended per panel. Supplemental High-Wind Panel Installation Kits & High-Wind Row Installation Kits are also available for high wind climates (sold separately).

Each Installation Hardware Kit Includes:

Panel Kit

  • (1) Outlet Header Hold-Down Bracket Assembly
  • (1) Outlet Header Bracket Flashing Base
  • (2) Strap Bracket, Stainless Steel
  • (2) Strap Bracket Flashing Base
  • (4) Hose Clamp, Stainless Steel
  • (2) Panel Connector Hose (3 3/4” long)

Row Kit

    • (1) Outlet Header Hold-Down Bracket Assembly
    • (1) Outlet Header Bracket Flashing Base
    • (2) Strap Bracket, Stainless Steel
    • (2) Strap Bracket Flashing Base
    • (4) Strap Clamp, Stainless Steel
    • (4) Hose Clamp, Stainless Steel
    • (1) End Cap
    • (1) Vacuum Relief Valve
    • (2) System Connector Hose (7” long)
    • (2) Pipe Connector, CPVC

Hold-Down Strap

      • (1) 100' Bulk Roll

Which Size System Do I Need?

The most relevant aspect of sizing a system is based on the square footage of your pool. We typically recommend anywhere from 50%-100% solar panel to pool square foot coverage based on a number of different variables including, weather, shade, install direction, wind, climate region, performance expectations, etc. For example, if your pool is 500 square feet, then 50% coverage would be 250 square feet of panels, 75% coverage would be 375 square feet of panels, etc. From there it is selecting a panel size that fits your installation area.

To find out precisely what size system (how many panels) will adequately heat your pool and provide the results your looks for, see our page on "How to Size Your System". All the factors are discussed and we will help you identify the best system for your pool, climate zone & heating goals.

D.I.Y. SYSTEM KITS

Take the guess work out with a DIY Kit!

EACH DIY KIT INCLUDES EVERYTHING YOU NEED TO:

  • Install your chosen number of solar panels in a single row. If the system is being broken-up into multiple rows, one additional row kit will be required for each added row. Please contact us if you need assistance with multi-bank / custom systems.
  • Mount each solar panel to your preferred installation surface (roof or rack).
  • Make water connections to and from each panel.
  • Make water connections to the systems’ supply and return plumbing lines.
    • Contains the parts necessary to aid in gravity drainage of the panels and piping.

What Parts are Included in the DIY Kit?

Panel Kit

  • Contains the parts necessary for installing a solar pool panel to a supporting surface and making water connections from one panel to another.
  • One (1) panel kit is included for each solar panel.

Row Kit

  • Contains the parts necessary for making water connections from a row of solar pool heating panels to the systems supply and return plumbing lines. Also contains the parts necessary to aid in gravity drainage of the panels and piping.
  • One (1) row kit is included for each system.

Hold-Down Strap

  • Fastens solar panels to a supporting surface (roof or rack) and keeps them secure.
  • One (1) 100' Bulk Roll is included for each system.
  • For normal wind climates; two (2) straps are recommended per panel.
  • For high wind climates, between three (3) and four (4) straps are recommended per panel. Supplemental High-Wind Panel Installation Kits & High-Wind Row Installation Kits are also available for high wind climates (sold separately).

Each Hardware Kit Includes:

Panel Kit

  • One (1) Outlet Header Hold-Down Bracket Assembly
  • One (1) Outlet Header Bracket Flashing Base
  • Two (2) Strap Bracket, Stainless Steel
  • Two (2) Strap Bracket Flashing Base
  • Four (4) Hose Clamp, Stainless Steel
  • Two (2) Panel Connector Hose (3 3/4” long)

Row Kit

    • One (1) Outlet Header Hold-Down Bracket Assembly
    • One (1) Outlet Header Bracket Flashing Base
    • Two (2) Strap Bracket, Stainless Steel
    • Two (2) Strap Bracket Flashing Base
    • Four (4) Strap Clamp, Stainless Steel
    • Four (4) Hose Clamp, Stainless Steel
    • One (1) End Cap
    • One (1) Vacuum Relief Valve
    • Two (2) System Connector Hose (7” long)
    • Two (2) Pipe Connector, CPVC

Hold-Down Strap

      • One (1) 100' Bulk Roll

Which Size System
Do I Need?

The most relevant aspect of sizing a system is based on the square footage of your pool. We typically recommend anywhere from 50%-100% solar panel to pool square foot coverage based on a number of different variables including, weather, shade, install direction, wind, climate region, performance expectations, etc. For example, if your pool is 500 square feet, then 50% coverage would be 250 square feet of panels, 75% coverage would be 375 square feet of panels, etc. From there it is selecting a panel size that fits your installation area.

To find out precisely what size system (how many panels) will adequately heat your pool and provide the results your looks for, see our page on "How to Size Your System". All the factors are discussed and we will help you identify the best system for your pool, climate zone & heating goals.

D.I.Y. SYSTEM KITS

Take the guess work out with a DIY Kit!

EACH DIY KIT INCLUDES EVERYTHING YOU NEED TO:

  • Install your chosen number of solar panels in a single row. If the system is being broken-up into multiple rows, one additional row kit will be required for each added row. Please contact us if you need assistance with multi-bank / custom systems.
  • Mount each solar panel to your preferred installation surface (roof or rack).
  • Make water connections to and from each panel.
  • Make water connections to the systems’ supply and return plumbing lines.
    • Contains the parts necessary to aid in gravity drainage of the panels and piping.

What Parts are Included in the DIY Kit?

Panel Kit

  • Contains the parts necessary for installing a solar pool panel to a supporting surface and making water connections from one panel to another.
  • One (1) panel kit is included for each solar panel.

Row Kit

  • Contains the parts necessary for making water connections from a row of solar pool heating panels to the systems supply and return plumbing lines. Also contains the parts necessary to aid in gravity drainage of the panels and piping.
  • One (1) row kit is included for each system.

Hold-Down Strap

  • Fastens solar panels to a supporting surface (roof or rack) and keeps them secure.
  • One (1) 100' Bulk Roll is included for each system.
  • For normal wind climates; two (2) straps are recommended per panel.
  • For high wind climates, between three (3) and four (4) straps are recommended per panel. Supplemental High-Wind Panel Installation Kits & High-Wind Row Installation Kits are also available for high wind climates (sold separately).

Each Hardware Kit Includes:

Panel Kit

  • One (1) Outlet Header Hold-Down Bracket Assembly
  • One (1) Outlet Header Bracket Flashing Base
  • Two (2) Strap Bracket, Stainless Steel
  • Two (2) Strap Bracket Flashing Base
  • Four (4) Hose Clamp, Stainless Steel
  • Two (2) Panel Connector Hose (3 3/4” long)

Row Kit

    • One (1) Outlet Header Hold-Down Bracket Assembly
    • One (1) Outlet Header Bracket Flashing Base
    • Two (2) Strap Bracket, Stainless Steel
    • Two (2) Strap Bracket Flashing Base
    • Four (4) Strap Clamp, Stainless Steel
    • Four (4) Hose Clamp, Stainless Steel
    • One (1) End Cap
    • One (1) Vacuum Relief Valve
    • Two (2) System Connector Hose (7” long)
    • Two (2) Pipe Connector, CPVC

Hold-Down Strap

      • One (1) 100' Bulk Roll

Which Size System
Do I Need?

The most relevant aspect of sizing a system is based on the square footage of your pool. We typically recommend anywhere from 50%-100% solar panel to pool square foot coverage based on a number of different variables including, weather, shade, install direction, wind, climate region, performance expectations, etc. For example, if your pool is 500 square feet, then 50% coverage would be 250 square feet of panels, 75% coverage would be 375 square feet of panels, etc. From there it is selecting a panel size that fits your installation area.

To find out precisely what size system (how many panels) will adequately heat your pool and provide the results your looks for, see our page on "How to Size Your System". All the factors are discussed and we will help you identify the best system for your pool, climate zone & heating goals.
