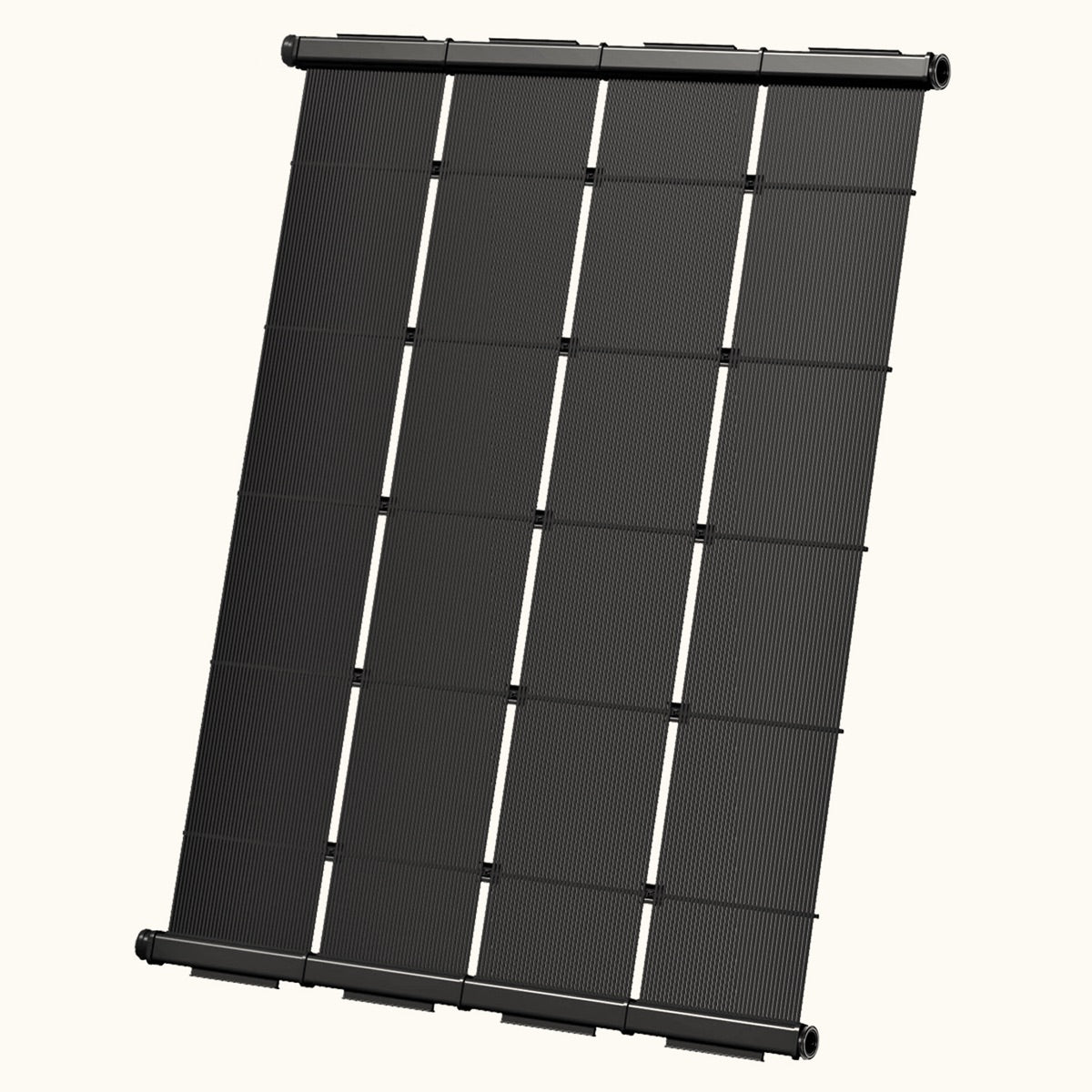

SwimJoy Industrial Grade Solar Pool Heater Panel
Replace a panel in your existing SwimJoy system or add an industrial-grade panel to your current array. Choose the size that matches your installation.
Includes one panel. Mounting and connection hardware is added below.
Does it fit your system?
Existing SwimJoy system: match the size of the panel you’re replacing and install it with the appropriate hardware. The 4-foot-wide models on this page use the same clamp connection and mounting rail. Heliocol and SunStar panels use a similar clamp-style connection. SwimJoy is a direct replacement for SunStar, but Heliocol panels are a different length and width, so SwimJoy isn’t a direct replacement for Heliocol. Send us a photo of the connection and your panel size and we’ll help you find the right option.
Rubber hoses and hose clamps (FAFCO, SwimEasy and most other brands): that’s a different connection — see the SwimEasy panel and its fit requirements →
Full fit check ↓This size is a custom order. It isn’t stocked, so allow extra time for shipping — we’ll confirm the lead time with you before it ships.
Sizes are approximate — measured lengths are under Fit & sizes ↓. Narrow spot? 1-ft-wide panel →
We recommend installing every panel with new mounting pads and clamp assemblies.
Something went wrong adding this to your cart. Please try again or call (619) 312-4822.
In stock · ships free · panel and hardware are added as separate cart lines
Browse replacement & add-on panels →
Replacing a single clamp part? SwimJoy parts & hardware → · Whole system past its prime? SwimJoy DIY kit →
Will it fit your existing system? Here’s how to tell.
Look at how your panels join each other. The connection tells you which replacement panel you need; the measurements below tell you which size.
Match the size of the panel you’re replacing and install it with the appropriate hardware. The 4-foot-wide models on this page use the same clamp connection and mounting rail. Not sure of the size? Measure it ↓
Heliocol and SunStar panels use a similar clamp-style connection. SwimJoy is a direct replacement for SunStar, but Heliocol panels are a different length and width, so SwimJoy isn’t a direct replacement for Heliocol. Send us a photo of the connection and your panel size and we’ll help you find the right option. Email the details → or call (619) 312-4822.
You need a hose-and-clamp panel. See the SwimEasy panel and its fit requirements → Twist-together unions? That’s SunLink Pro →
Which length do you have?
The size you order is in the first column of the table; the length you’ll see on a tape is in the second. Measure the panel you’re replacing:
- Length: from the outside edge of the top header to the outside edge of the bottom header.
- Width: across one header from one end to the other, including the end fittings — not just the tubes.
Match your length to the measured length column. The 4-foot-wide models on this page are all about 48½″ wide, with a 2″ manifold; a 1-foot-wide model is sold separately. If your measurement doesn’t land on a row, send us a photo and the numbers and we’ll confirm the size.
| Size you order | Measured length | Area | Weight | Price |
|---|---|---|---|---|
| 4′ × 6.5′ | 79.25″ | 26 sq ft | 14 lb | $499.99 |
| 4′ × 7.5′ | 91.94″ | 30 sq ft | 16 lb | $529.99 |
| 4′ × 9.5′ | 116.28″ | 38 sq ft | 19 lb | $639.99 |
| 4′ × 10.5′ | 128.44″ | 42 sq ft | 22 lb | $629.99 |
| 4′ × 12.5′ | 152.88″ | 50 sq ft | 24 lb | $649.99 |
| 4′ × 15.5′ | 190.54″ | 62 sq ft | 30 lb | $749.99 |
-
4′ × 6.5′Measured length79.25″Area26 sq ftWeight14 lbPrice $499.99
-
4′ × 7.5′Measured length91.94″Area30 sq ftWeight16 lbPrice $529.99
-
4′ × 9.5′Measured length116.28″Area38 sq ftWeight19 lbPrice $639.99
-
4′ × 10.5′Measured length128.44″Area42 sq ftWeight22 lbPrice $629.99
-
4′ × 12.5′Measured length152.88″Area50 sq ftWeight24 lbPrice $649.99
-
4′ × 15.5′Measured length190.54″Area62 sq ftWeight30 lbPrice $749.99
Every size is roughly 48½″ wide, measured from one end of the header to the other. Don’t see your measurement? Send us a photo and the numbers and we’ll confirm the size.
Specifications
Not sure it fits? Product Support → · (619) 312-4822
Want more heat from the system you already have? Add a panel.
An added panel installs like a replacement and joins the row you already have. The Panel Installation Kit supplies its mounting pads and clamps — the panel on its own doesn’t include them. Size the whole system rather than the addition: the sizing guide works from your pool’s surface area, how much of the year you want to swim, and the panel size you have now. Starting a new row also takes row plumbing; ask us what your layout needs.
Rather have us map it? Free System Design →
Keep more of the heat your panels produce — GeoBubble solar pool covers →
Engineered differently. Built to last.
SwimJoy solar pool heating panels are engineered for long-term rooftop durability, with one-piece construction, strap-free mounting, and fewer connections that can wear, leak, or require maintenance over time.

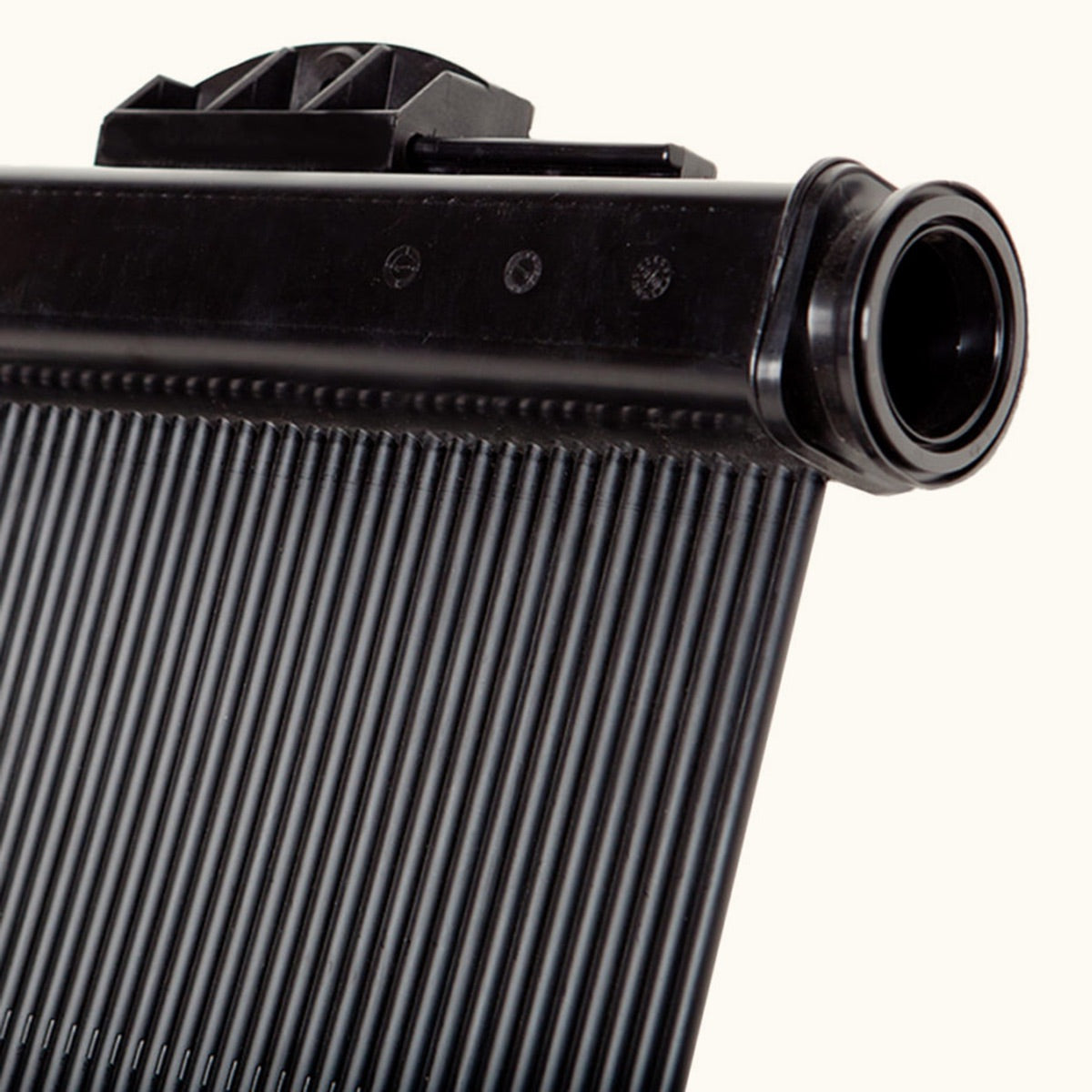

Header and riser tubes are over-molded into a single piece, eliminating seams and welds that can become potential failure points.
Mounting rails are molded directly into the manifold, while specialized pads secure the collectors to the roof without traditional tie-down straps.

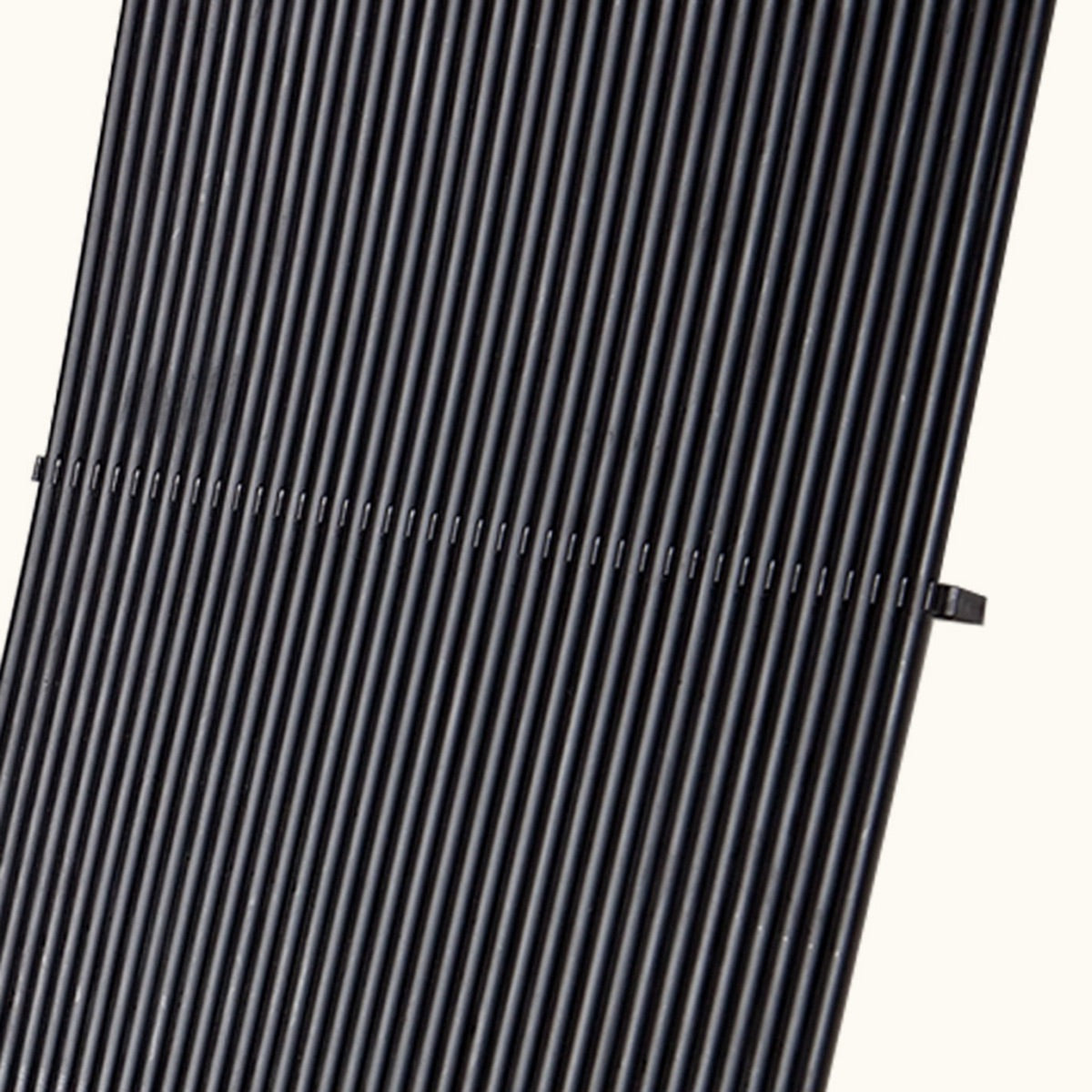

Separated riser tubes allow water to drain from the collectors, helping protect against freeze damage and pinhole leaks during cold weather. Where freezing occurs, the collectors must be drained when the pump shuts off, as the installation manual requires.
Patented panel clamps replace traditional rubber hoses and metal hose clamps, creating a cleaner connection with fewer components to maintain.
Certifications
From our customers, in their own words.
You've got questions. We've got answers.
Will a SwimJoy replacement panel fit my existing system?
If your system is SwimJoy, match the size of the panel you’re replacing and install it with the appropriate hardware; the 4-foot-wide models on this page use the same clamp connection and mounting rail. Heliocol and SunStar panels use a similar clamp-style connection. SwimJoy is a direct replacement for SunStar, but Heliocol panels are a different length and width, so SwimJoy isn’t a direct replacement for Heliocol. Send us a photo of the connection and your panel size and we’ll help you find the right option. Systems that join panels with rubber hoses and hose clamps use a different connection; see the SwimEasy panel and its fit requirements.
I have FAFCO, Heliocol or SunStar panels — which replacement do I need?
Heliocol and SunStar panels use a similar clamp-style connection. SwimJoy is a direct replacement for SunStar, however the length and width of Heliocol is different, so SwimJoy isn’t a direct replacement for Heliocol. Unsure which panel you have? Send us a photo of the connection/header and your panel size, and we’ll help you find the right option. FAFCO panels, like most other brands, join with rubber hoses and hose clamps, so you’d need the SwimEasy replacement panel →
How do I know which panel length to order?
Order the size on your original order if you have it. Otherwise measure the panel from the outside edge of the top header to the outside edge of the bottom header and match it to the measured lengths in the Fit & sizes table above. If your measurement doesn’t land on a row, send us a photo and the numbers and we’ll confirm the size.
Do I need new mounting pads or clamps?
We recommend it. Every panel, replacement or addition, installs best with new mounting pads and clamp assemblies — reusing old hardware has been shown to damage new panels. The Panel Installation Kit above covers one panel. Roof fasteners and sealant aren’t supplied — pick those up at a hardware store for your roof type, or ask us what your roof needs.
Can I add panels to extend my swim season?
Yes. Size the whole system rather than the add-on — the sizing guide works from your pool’s surface area, how much of the year you want to swim, and the panel size you already have. Each added panel will require a Panel Installation Kit, which provides the installation hardware for the new panel. See Add a Panel above, or let our free system design map it for you.
What’s included?
One SwimJoy solar pool heater panel in the size you select. Mounting pads, clamp assemblies, and plumbing connectors are sold separately.
What about freeze-prone climates?
Separated-tube design; winterize before freezing. SwimJoy’s separated riser tubes let the collectors drain, which helps protect against freeze damage, and the freeze warranty applies only when the panels are installed according to the manual and drained when the pump shuts off where freezing occurs.
When does a full kit make more sense than single panels?
It depends on how many panels you’re replacing and how much of the hardware needs replacing with them. The SwimJoy DIY kit bundles panels with mounting pads, clamps, and row connections; single panels make sense when the other panels, mounting, and plumbing in your system are in good shape. Ask us and we’ll compare the two for your system, or request a free system design.
What does the warranty cover?
SwimJoy panels are covered by Solar Pool Supply’s 12-Year Limited Warranty. For twelve years from purchase, a panel with a manufacturing defect is repaired or replaced at no charge for the part. Freeze damage is covered when the panels are installed according to the manual and drained when the pump shuts off where freezing occurs. After twelve years, a Lifetime Limited provision replaces a defective panel for 50% of the then-published MSRP. Labor, removal, and shipping aren’t covered, and the warranty applies to the original purchaser and installation. Read the full terms →
Get your pool heating again.
Choose your replacement panel size above and order with free shipping.
