SwimJoy Industrial Grade DIY Solar Pool Heater Kit - Advanced High-Wind Mounting System - Lifetime Ltd. Warranty
- Satisfaction Guarantee
- In stock, ready to ship
One of The Most Efficient, Durable & Longest Lasting Solar Pool Heaters Available!
When it comes to residential pool heating, SwimJoy provides homeowners with one of the best solar options available today. SwimJoy's specialized system is extremely durable, energy efficient, freeze resistant, virtually maintenance-free & designed to withstand extremely strong storm winds.
A technologically advanced design makes SwimJoy one of the most efficient, maintenance-free solar pool heating systems on the market. An energy efficient design provides year-round pool heating in warm climates and extends the swim season in colder climates. Thanks to the reliability, efficiency, and durability of its state-of-the-art system, you can entertain, exercise, and create great memories, worry free.

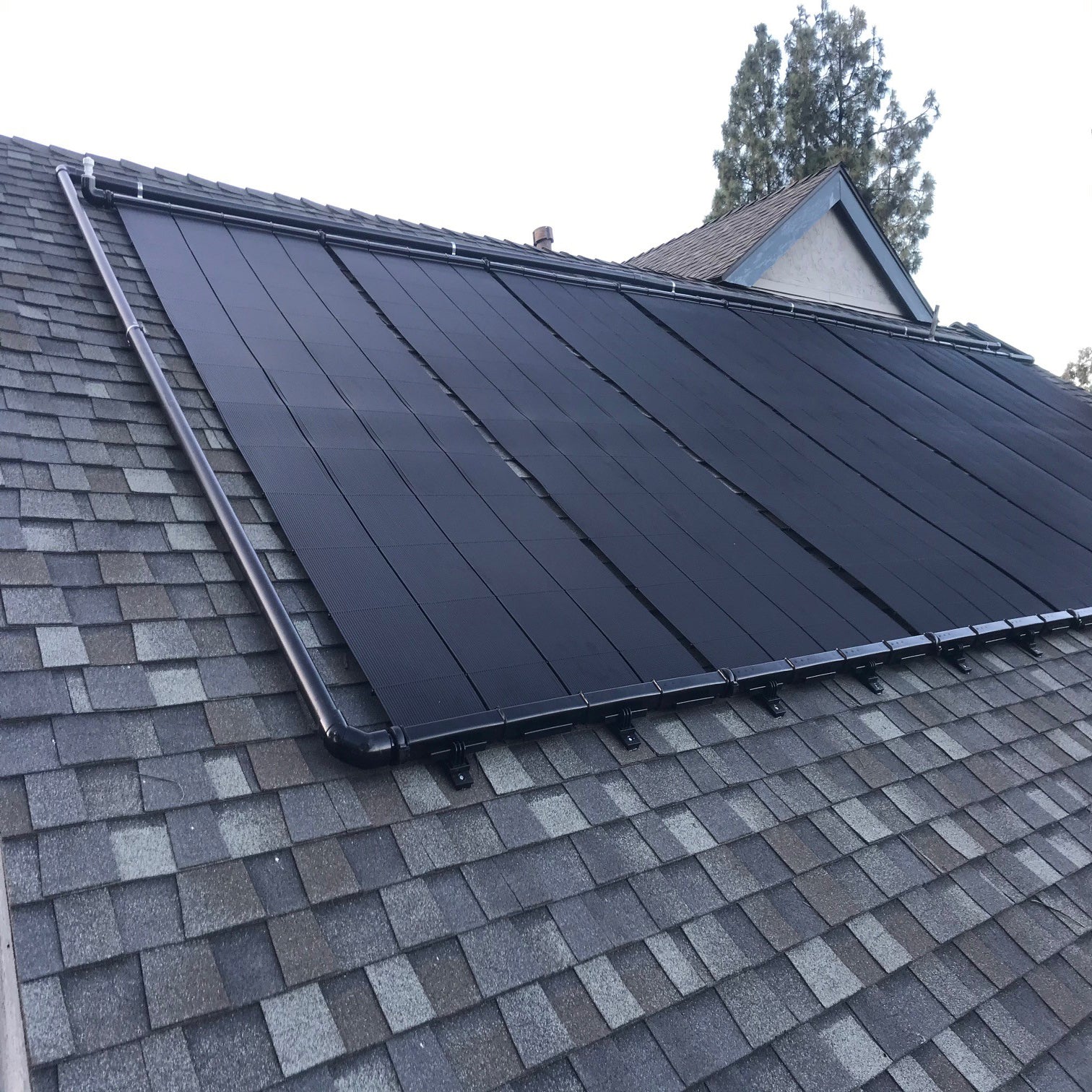

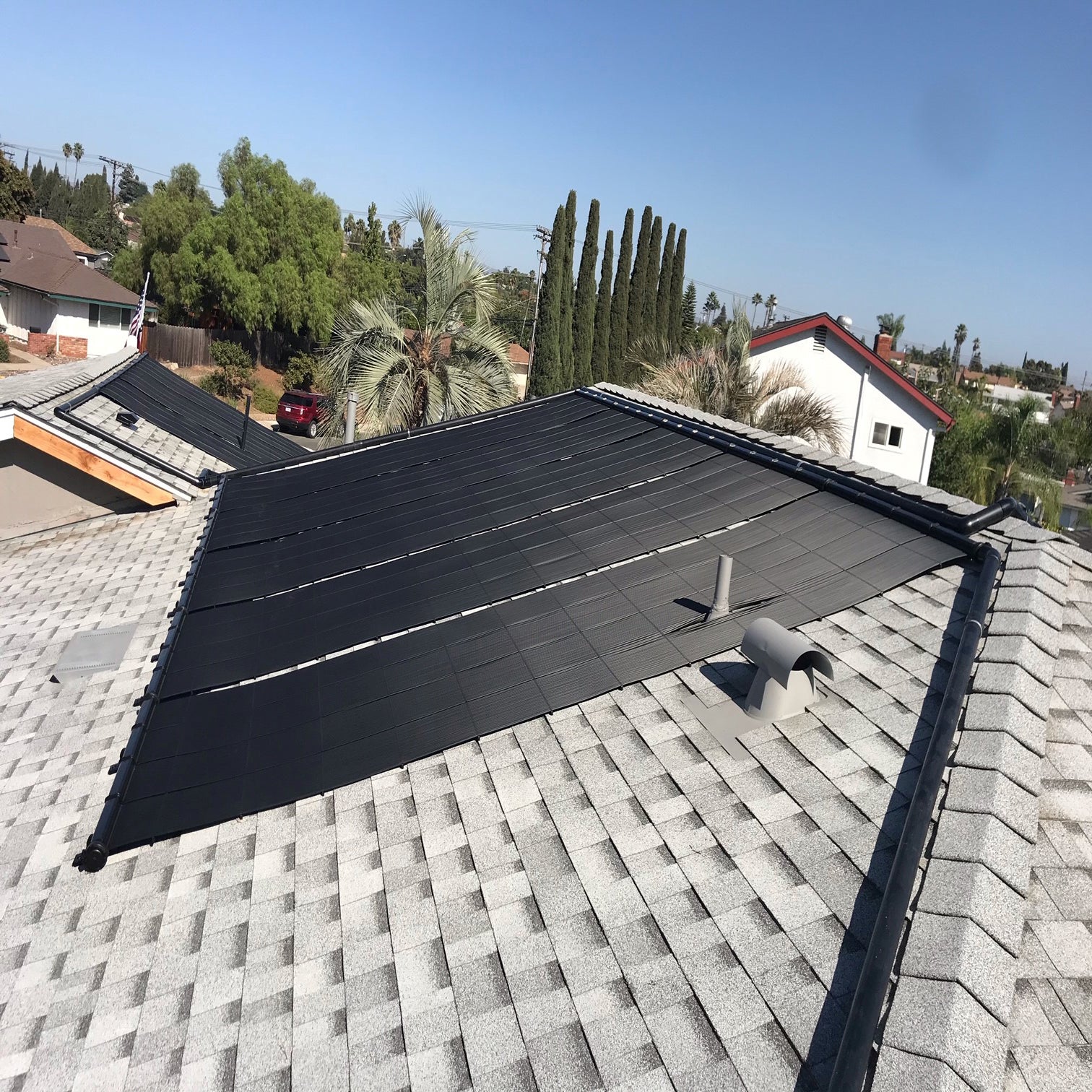

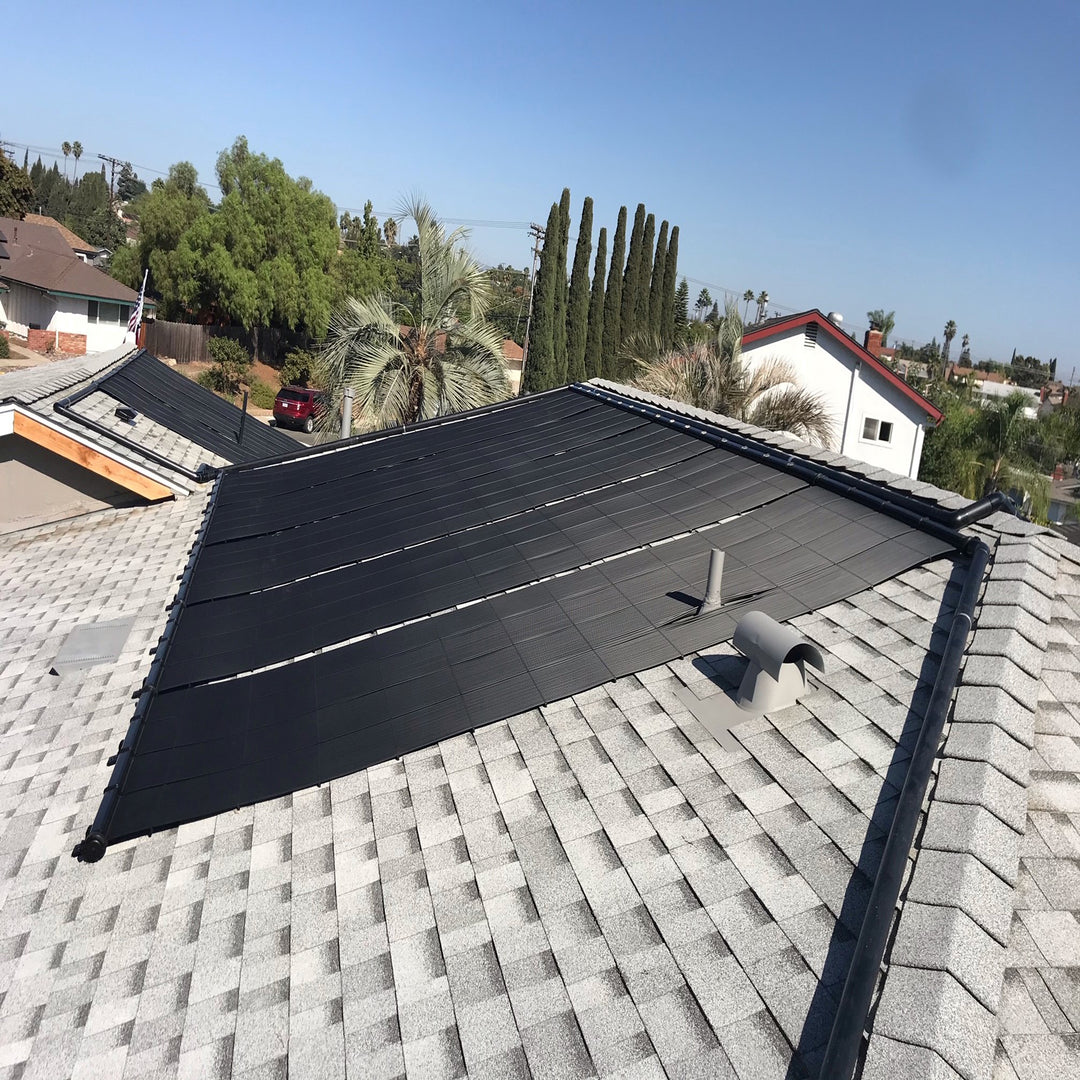

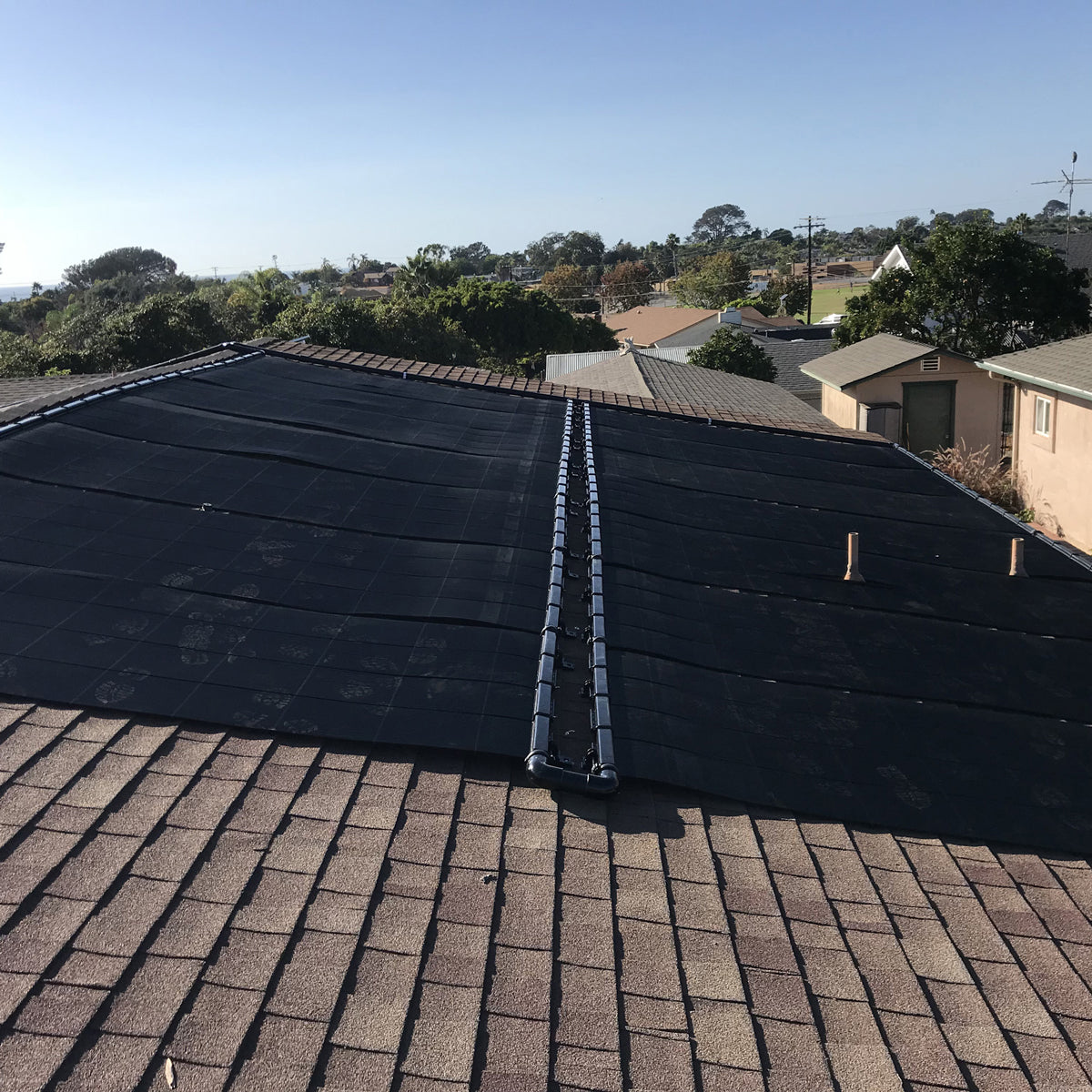

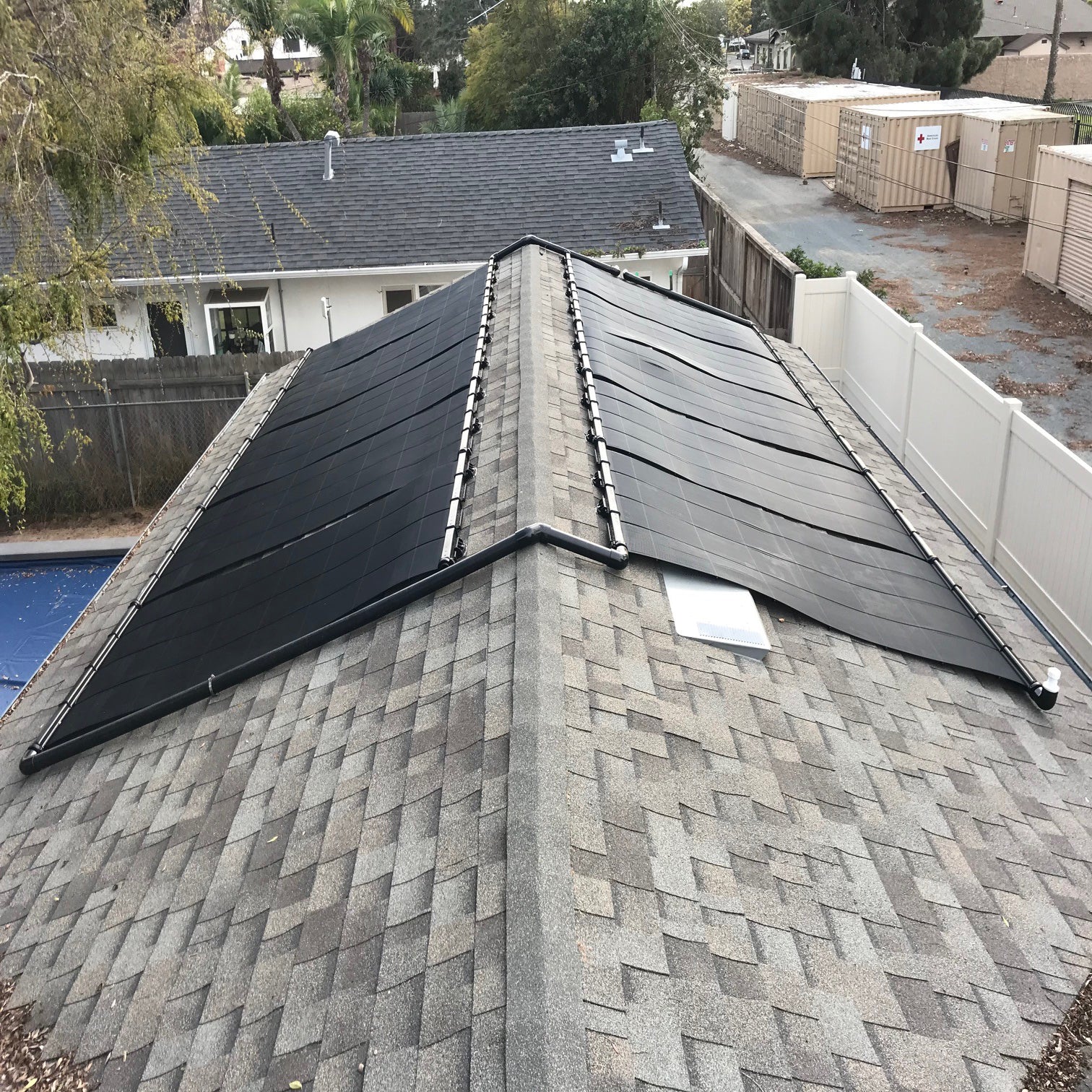

Strapless Flush Mounting to Any Roof Type! Specialized Mounting System Changes the Game!

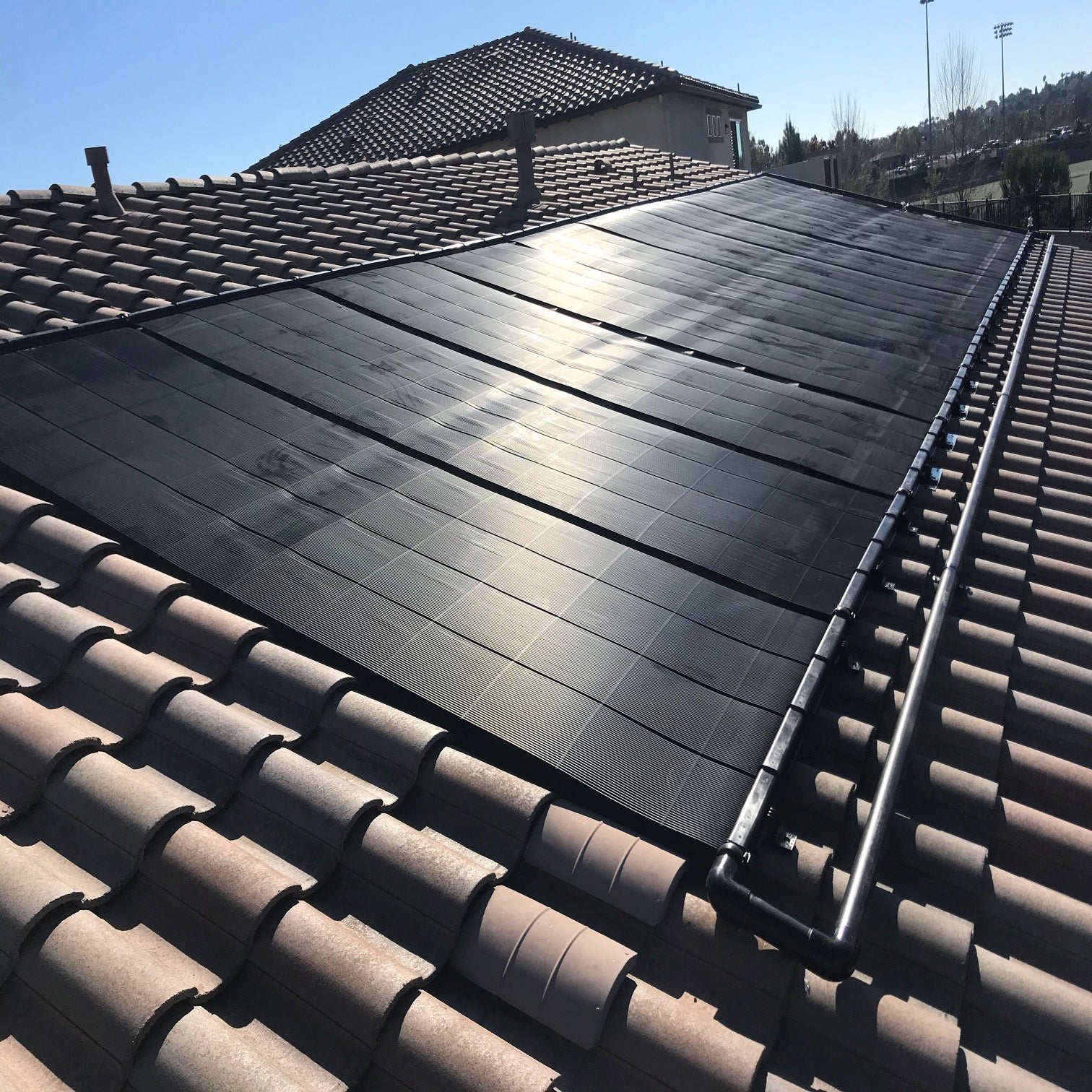

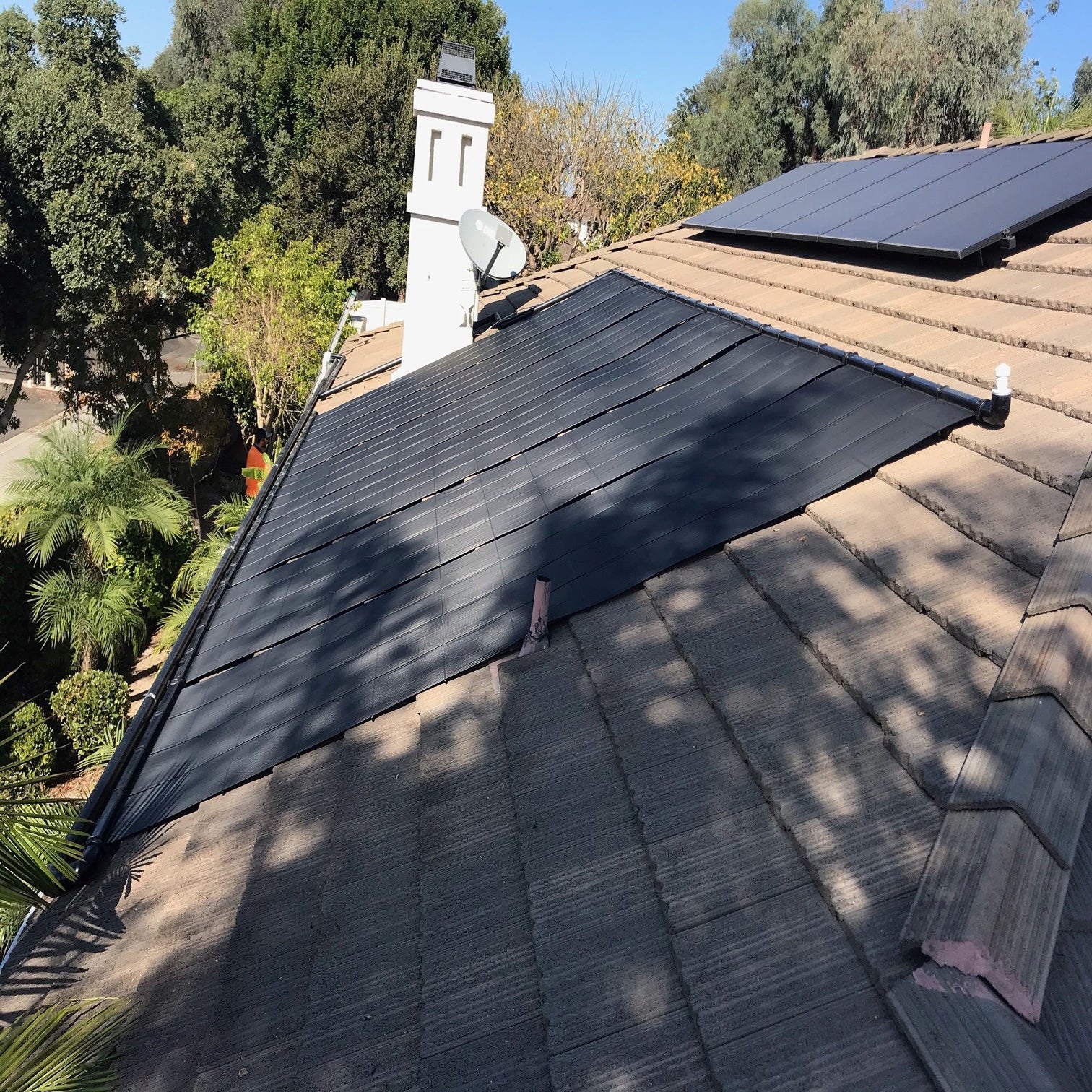

SwimJoy solar pool heaters feature a distinct, sleek design showcased by its specialized mounting pad system. Each panel contains a mounting rail molded directly into the manifold, allowing for a greater degree of flexibility with mounting hardware locations, especially useful for tile roof installations. Specialized mounting pads allow for strapless flush mounting to any roof type, minimize roof penetrations and allow for expansion and contraction.
SwimJoy's innovative mounting system withstands violent storm winds without the need of tie-down strap. Not only are strapless mounts much more aesthetically appealing, the elimination of strapping also minimizes the number of roof connections, making SwimJoy one of the most roof-friendly systems available. SwimJoy installations are completely strap free!
An individual tube design allows roofs to breathe, preventing moisture buildup and virtually eliminating wind loads. Furthermore, each panel contains a mounting sled every twelve inches down the length of the panel. These sleds prevent panel distortion and riser tube abrasion over time while also adding strength to the unit.
Maximum Efficiency & Longer Operating Life!
SwimJoy features an open flow design with each and every individual tube opening directly into the header, increasing flow and virtually eliminating backpressure, saving wear and tear on your pool pump.
An individual tube design allows riser tubes to expand and contract independently; eliminating cracks and leaks due to wear and tear from thermal expansion and contraction. Low head-loss riser tubes eliminate high head pressures, maximize efficiency, and protect against clogging. The round design also captures more heat.
SwimJoy's unique square header shape maximizes flow and increases efficiency. Headers and risers are molded together forming one solid piece, eliminating seams and welds that can crack with age and stress. This produces the strongest possible connection and ensures a low maintenance system.
The Industry's Best Method for Connecting Panels & PVC Pipe!
SwimJoy's patented panel clamp system eliminates the need for traditional rubber hoses and hose clamps that require regular rooftop maintenance and replacement, eliminating hassles and saving time and money. Panel clamps also allow the panels to be mounted closer together for a more efficient and attractive system!
Manufactured By The Global Leader of Solar Pool Heating Systems!
SwimJoy is built and designed by Magen Eco Energy, one of the most renown solar pool heating manufacturers in the world. Magen provides both residential and commercial solar solutions to countless swimming pools across the globe.
In Conclusion, many options exist for heating your swimming pool either with or without solar. SwimJoy now provides homeowners with a solution they can rely on without needing to compromise in one category to achieve another. SwimJoy won't heat your pool at night or during harsh winter conditions, however it will provide some of the best results in the industry with one of the world's most trusted names behind it. You really can rest assured with SwimJoy.
Industry Leading Quality Guarantee!
SwimJoy solar pool heater panels come with an industry leading 12-year limited warranty that includes a bonus lifetime limited warranty & freeze protection; one of the longest, most comprehensive warranties in the industry.
Extensive Testing & Certification!
- NSF-50: Ensures the safety and performance of its products when used for public pools, spas, and recreational water facilities.
- ISO 9001: Quality Management Standards
- ISO 14001: Environmental protection by the International Organization for Standardization.
- SRCC OG-100: Certified for safety, durability, and performance by the Solar Rating and Certification Corporation.
- SRCC OG-400: The most current standard; this certification is a mark of quality, safety, durability and proper integration with pool designs and plumbing systems.
WHAT MAKES SWIMJOY SO SPECIAL!
- Industrial Grade Durability
- Manufactured using a patented over-molding process whereby the headers and riser tubes become one piece, making the collectors extremely durable.
- Ultra-Secure Rail Mounting System
- Certified to withstand strong wind, violent storms are no match for SwimJoy’s durable panels and mounting method.
- Strap-free mounting pad system minimizes penetration points, increases aesthetic appeal.
- Maximum Freeze Resistance
- Water escapes completely, preventing freezing and cracked tubes.
- Separated tube design is less susceptible to "pinhole" leaks from freeze damage.
- Ultimate Efficiency
- Each tube opens directly into the header increasing flow and eliminating back-pressure.
- Lower head pressure keeps pumping requirements to a minimum which helps maximize efficiency.
- Eliminates wear and tear on pool pumps.
- Maintenance-Free Panel Connections
- One-piece panel design and superior mounting system eliminates the need for rubber hoses and metal hose clamps that require regular maintenance and replacement.
- Tested, Trusted & Reliable!
- Manufactured by Magen Eco Energy, the largest international manufacturer of solar swimming pool heating systems.
- Industry leading 12-year full, lifetime limited warranty with freeze protection.
- Wide Range of Panel Sizes
- SwimJoy solar pool panels are available in a multitude of sizes to fit any roof size and blend nicely with your home. We have 1 ft. widths available to help maximize collector coverage when obstructions or adverse roof orientations exist.
🎥 SEE HOW EASY SWIMJOY IS TO INSTALL!

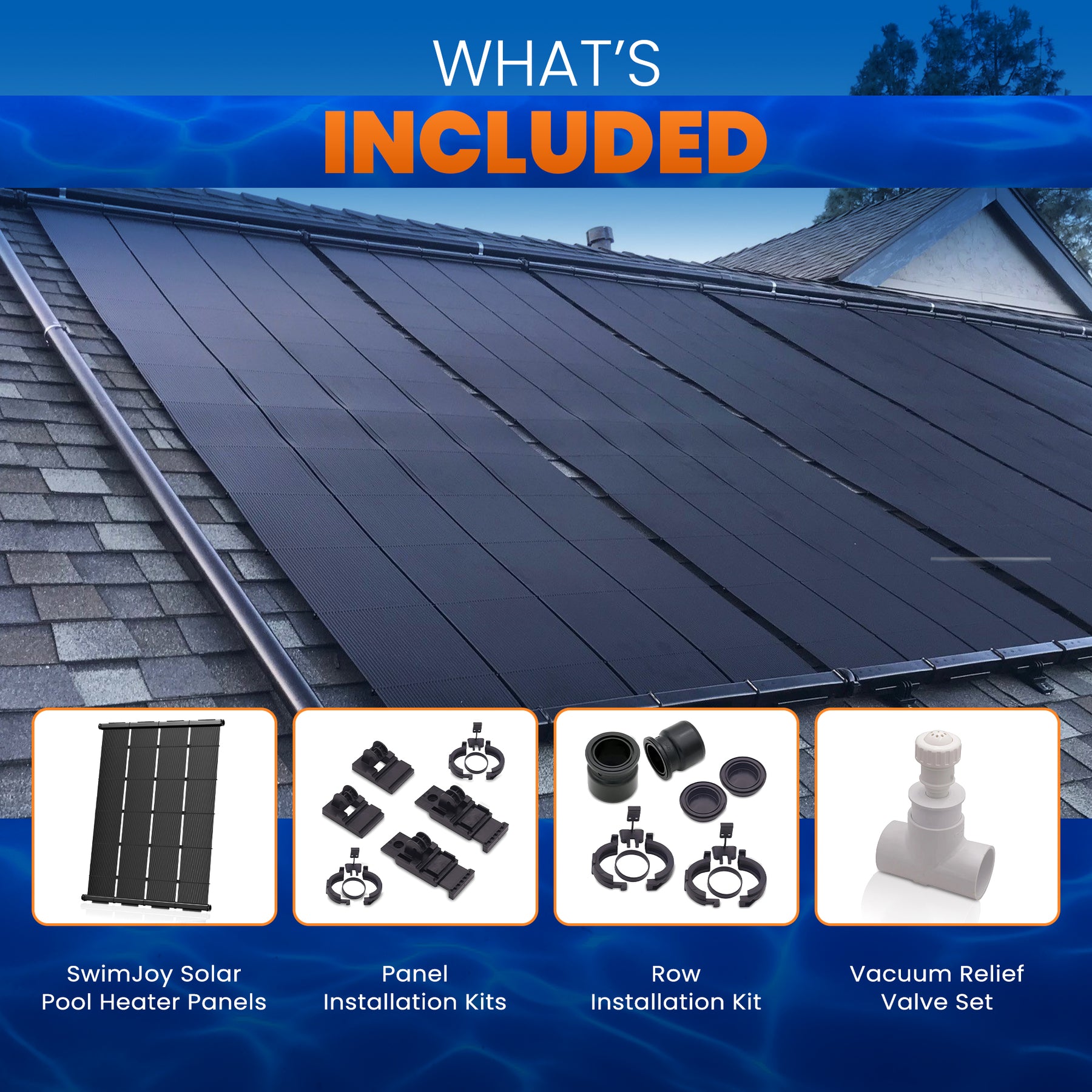

WHAT'S INCLUDED
Each DIY Kit Includes Everything You Need To:
- Install the selected number of solar panels in a single row.

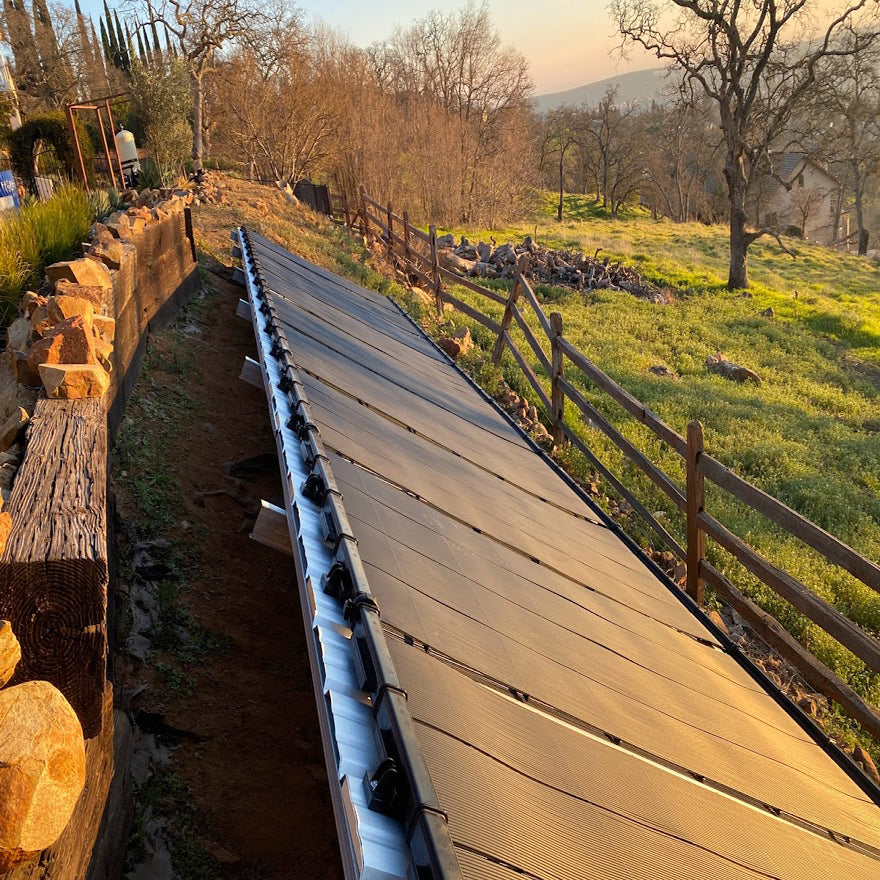

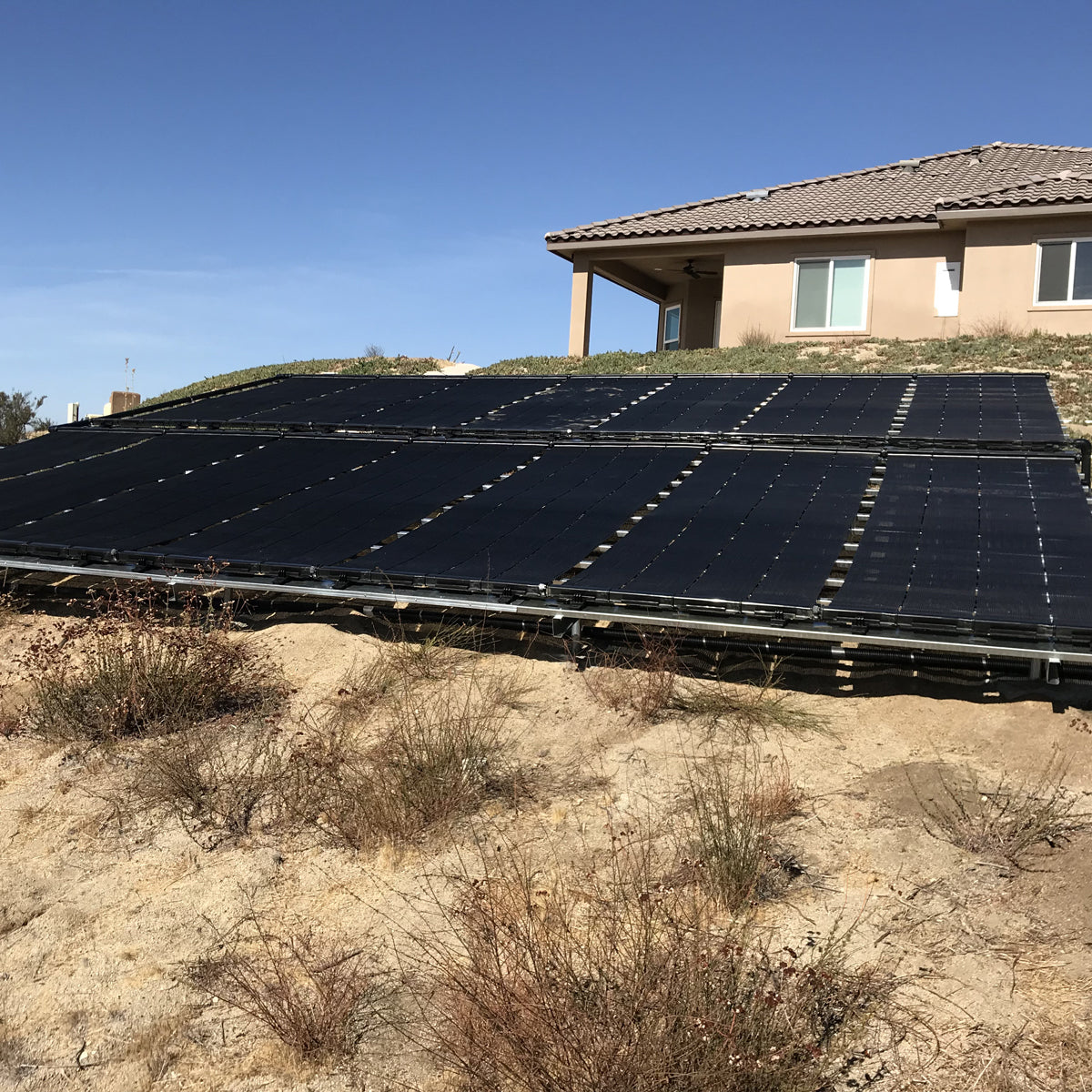

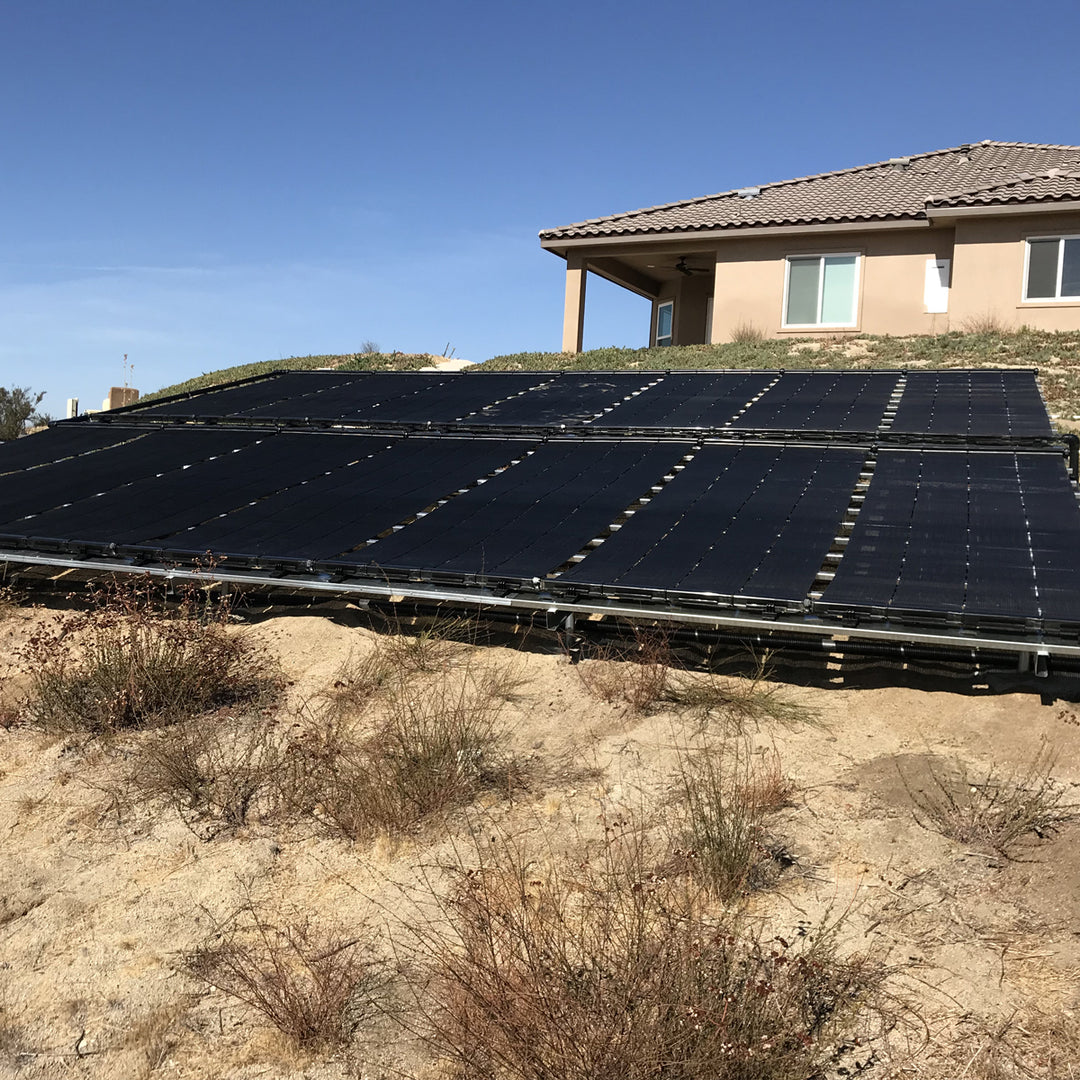

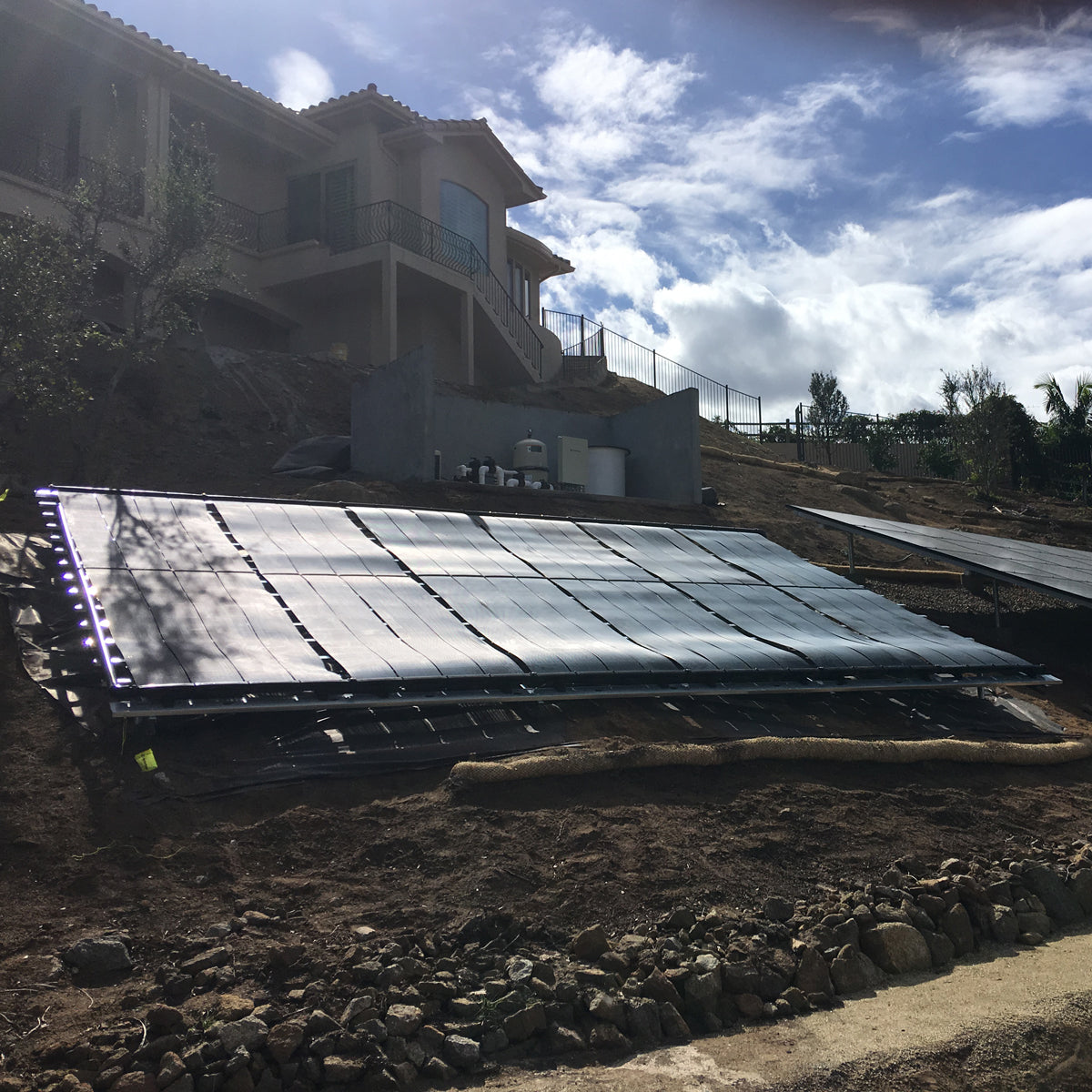

- Mount each solar panel to your preferred installation surface (roof or rack).
- Make water connections to and from each panel.
- Make water connections to the systems’ supply and return plumbing lines.
- Contains the parts necessary to aid in gravity drainage of the panels and piping.

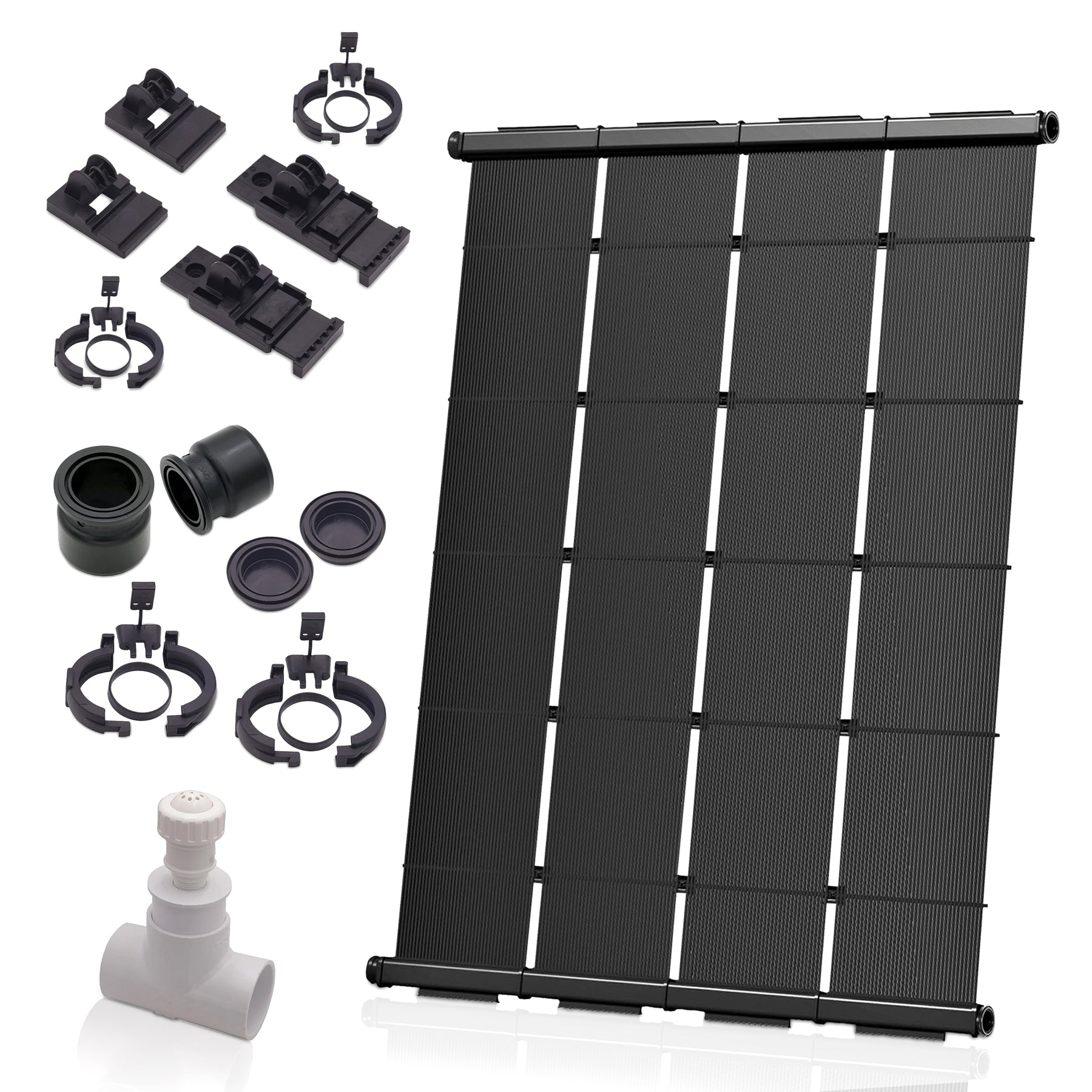

The Following Components are Included in Each DIY Kit:
Panel Kit: Contains the parts necessary for installing a solar pool panel to a supporting surface and making water connections from one panel to another. One (1) panel kit is included for each solar panel.
Each panel kit contains;
- (2) Mounting Pad, Top Header
- (2) Mounting Pad, Bottom Header
- (2) PPC, Panel Clamp Assembly
Row Kit: Contains the parts necessary for making water connections from a row of solar pool heating panels to the systems supply and return plumbing lines. One (1) row kit is included for each system.
Each row kit contains;
- (2) PPC, Panel Clamp Assembly
- (2) End Cap
- (2) Pipe Connector, CPVC
Vacuum Relief Valve Attachment Set: Contains the parts necessary to aid in gravity drainage of the panels and piping. One (1) set is included for each system.
Each vacuum relief valve attachment set contains;
- (1) Vacuum Relief Valve, 3/4" MPT
- (1) Reducer Bushing, Spigot X FPT, 2" X 0.75"
- (1) PVC Pipe Fitting, Tee, Slip X Slip X Slip, White, 2"
OPTIONAL ADD-ON: Manual Temperature Control Kit:
You have the option of including a full set of valves necessary for completing the plumbing connections from your solar pool heating panels to your pool's pump & filtration system. This package of Premium Pentair Pool Valves has been bundled together to provide you with a complete set of the best valves you can get (should you choose to include them).
If you are installing a system for the first time, these valves will be needed to complete the plumbing connection from your solar panels to your pool's pump and filtration system. If you are replacing an existing system, these valves may already be in place, and new ones would then not be needed.
Generally Speaking:
- For new installations (first time installs): Valves will be needed.
- For replacing an old/existing system: Valves not required.
If you choose to include valves, you will receive a full set of Premium Pentair CPVC Optimum positive-seal pool valves. These are top of the line valves that provide a lifetime of superior performance and have excellent flow characteristics for a high flow rate, ideal for maximizing the performance and efficiency of your solar pool heating system.
A 3-port diverter valve is manually adjusted to turn solar on and off. Two isolation valves are used to completely shut off solar for maintenance and winterization (prevents water from entering the solar panels). The check valve is used to prevent water from flowing backwards through your pump & filter. Includes premium Pentair lube-free valve’s, 2″-2.5″ CPVC.
If you choose to include valves, you will receive the following:
- (1) Pentair 3-Port Solar Valve w/ Drain Down, CPVC, 2″-2.5″
- (2) Pentair 2-Port Check Valve, CPVC, 2″-2.5″
- (2) Pentair 2-Port Isolation Valve, Positive Seal, CPVC, 2″-2.5″
HOW MANY PANELS DO I NEED? WHAT SIZE SYSTEM?
The most relevant aspect of sizing a system is based on the square footage of your pool. We typically recommend matching anywhere from 50%-100% of your pools total surface area to solar collector coverage (solar panels).
*For example, if your pool is 500 square feet, then 50% solar coverage equals 250 square feet of solar panels, 75% solar coverage equals 375 square feet of solar panels, etc. From this point, you'll want to look at selecting a panel size that fits your installation area.
- For a complete breakdown on how to select & size the right solar pool heating system, see our sizing help page:
SIZING GUIDE: How Many Panels? Which Brand? (CLICK HERE)
